| OVERLAYS: This page gives you quick access to upload up to 8 PNG format images for use on-screen image overlay files and configure them to your inputs according to your show's needs . |
When you open the OVERLAY page it will show the overlays, however, if you will first need to upload some image files, tap on the GRAPHICS tab to switch to the selection and uploading page.
|

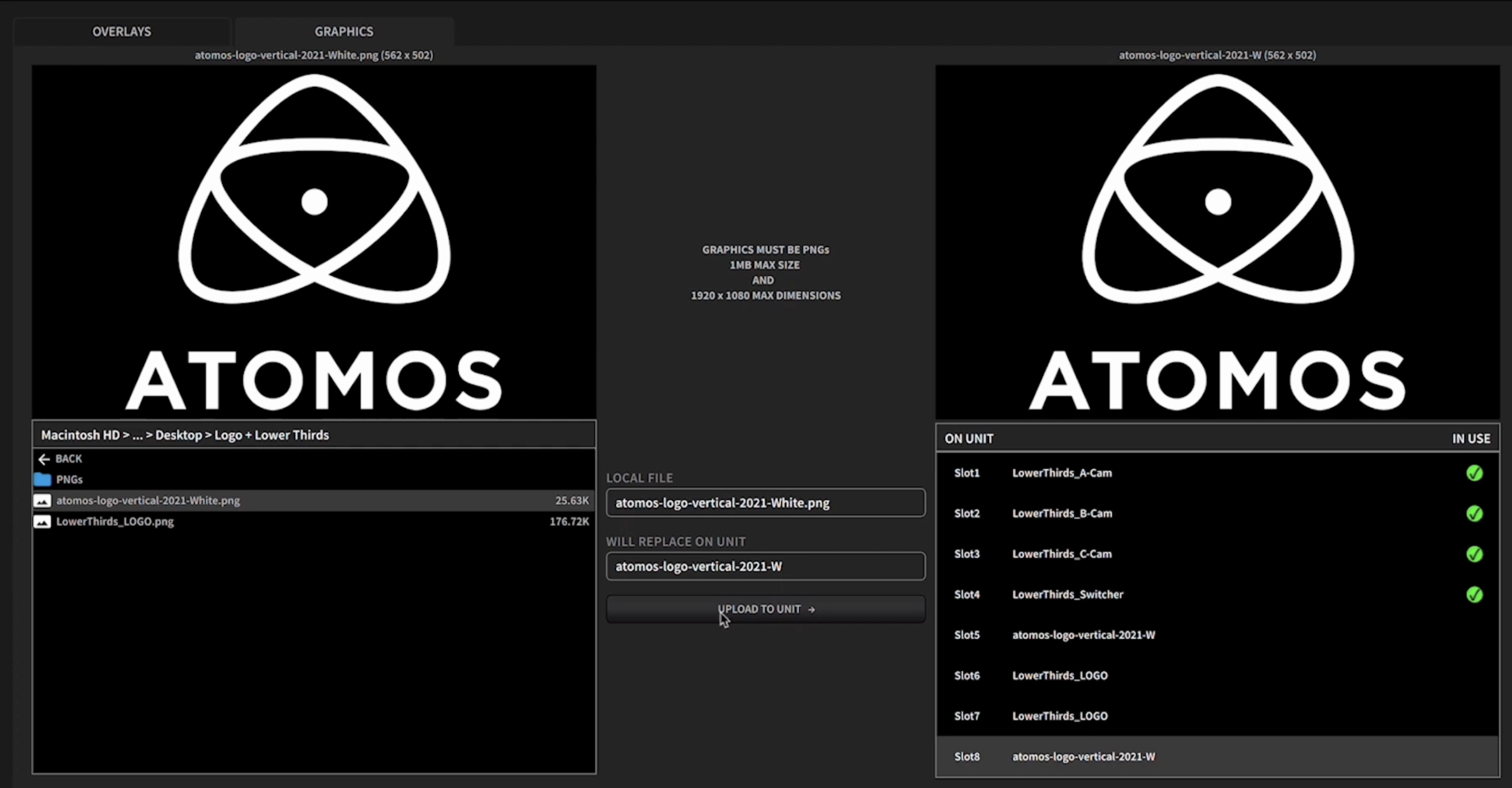

Preview and select the PNG image files accessible from your computer. Remember that the PNG images need to be the correct size for your show and no larger than 1920 x 1080 pixels. |
Details about the selected local file, and which location it will be loaded into on the Atom X CAST. Tap the button to transfer the image. |
Preview and view the list of all 8 of the loaded image files on the Atom X CAST device. |

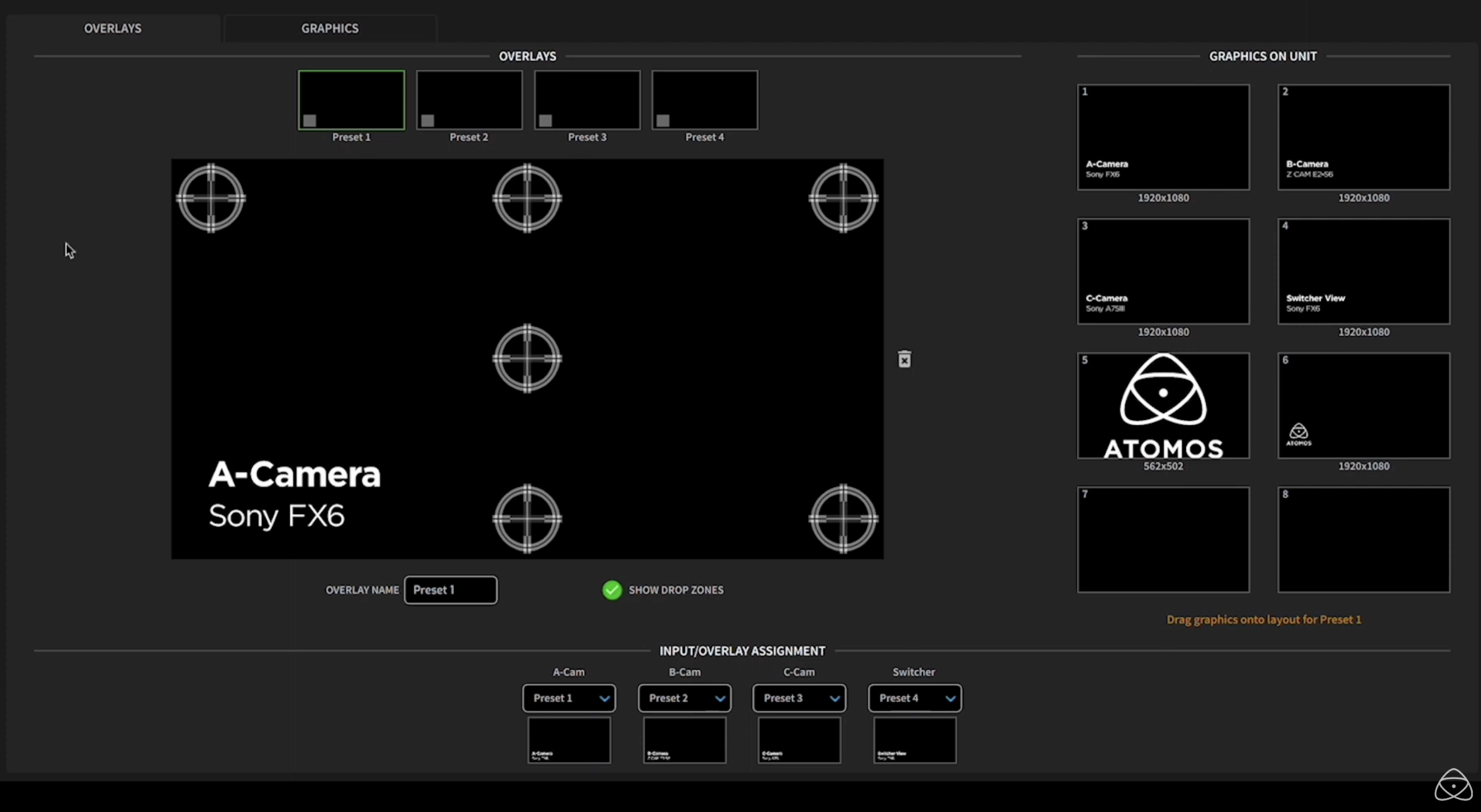

This is the OVERLAYS page where you can configure which images are associated to which inputs and what position on the program output they will be displayed.
| First, select the preset you want to configure from the four here: | |||
|
|
Second, select and drag the image preview to the required drop zone target on the screen layout to the left. An image can only be used with one preset, upload it again if it is needed twice. |
||
| You can also change the OVERLAY NAME here. | Third, select the INPUT/OVERLAY ASSIGNMENT to link the overlay image to an input source. | ||
