SWITCHER: This is the main production page where you control the output of your show. Switching between the video, audio, overlays and picture-in-picture sources to stream or record. |

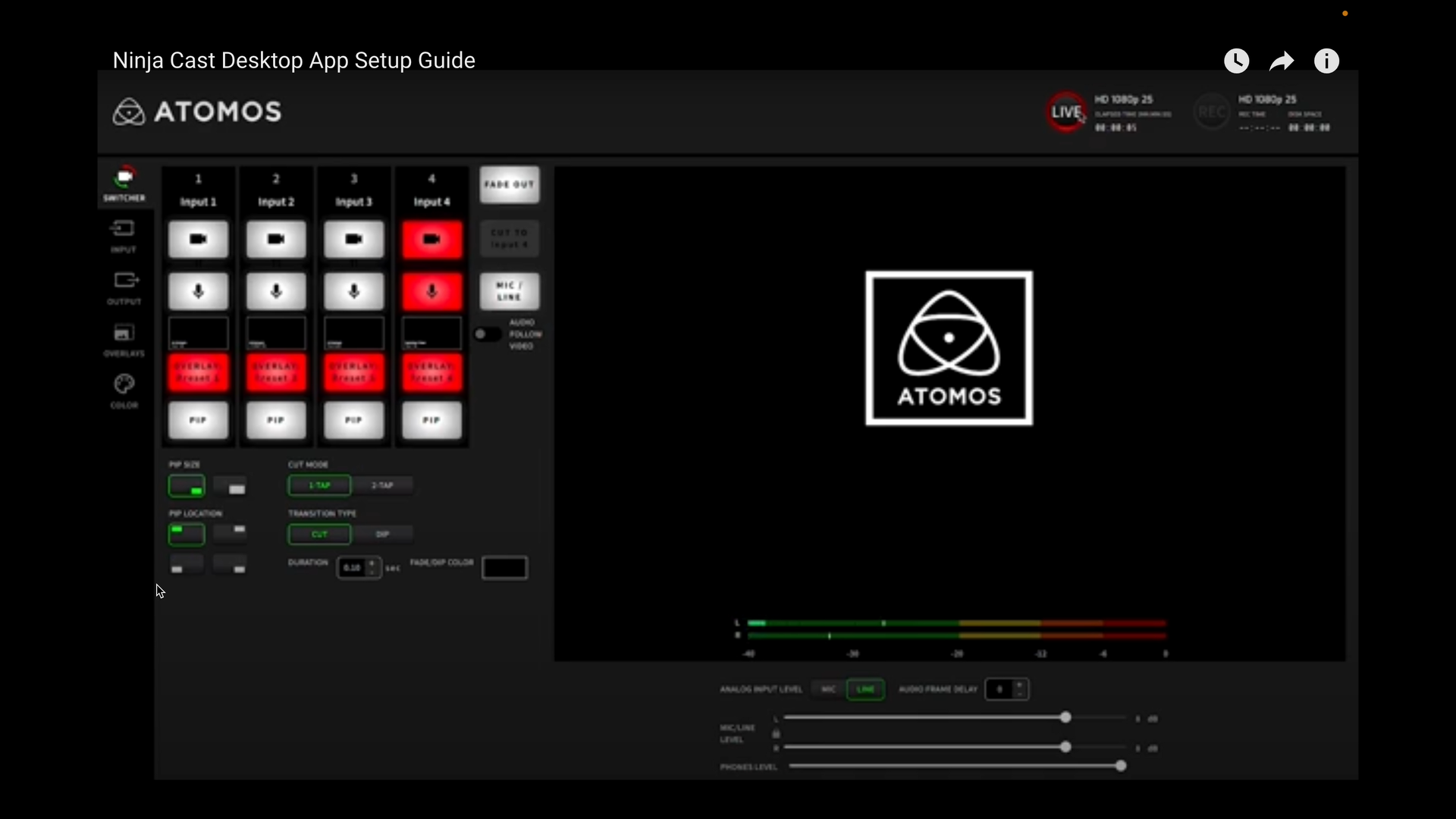

The Layout of this page provides all the controls needed during the production of a show, outlined below.
The Fade Out, Cut To and Mic/Line buttons are in the centre. |
|||
These are the switcher buttons to select the source of video, audio, overlay and picture-in-picture.
|
The Live Program output is displayed with audio VU meters below. |
||
Below are controls for PIP, and transitions. | Audio controls are below the VU meters. | Connection Status to the CAST device. |
|
The top row of buttons are to switch the video source. Setting the CUT MODE switch selects which of the two modes, one-touch-switch mode the video source is selected as program output when tapped. If in two-touch mode when tapped the video source is switched to preview then tap again to switch it to the program output. Change the transition type to CUT or DIP - set the DIP duration and the fade or dip color. You can also switch your inputs using the 1, 2, 3 and 4 keys. |
|||
|
Next is Audio selection, tap on the mic button on the corresponding input to select the audio from that source to the program output.
You can also switch your inputs using the SHIFT + the 1, 2, 3 and 4 keys. |
|||
|
Overlays, you can activate overlays that have been configured in the overlays settings page. |
|||
|
Picture-In-Picture (PIP) Tap on a PIP input to select it for program output the pip button turns yellow to show it is active. Tap the button again to remove it from the program output. You can also switch your inputs using the Cmd/Alt + the 1, 2, 3 and 4 keys.
|
|
You can also set the audio source input levels to MIC or LINE depending on the type of audio source you are using. |
|
|
Here you can adjust your audio frame delay using the plus and minus buttons. |
|
Use the faders to adjust your audio levels for your audio source, and tap the lock button to de-group the left and right channels so you can set them independently. The PHONES LEVEL slider is used to change the headphone monitoring volume. |
