Canon Camera Setup for Touch to Focus

• 1. Power on camera and Shinobi II.
• 2. Select camera mode from still/movie.
• 3. Select Shinobi II, Control/"Trigger Mode" to match camera mode (Photo/Video).
• 4. Connect camera and Shinobi II with HDMI cable.

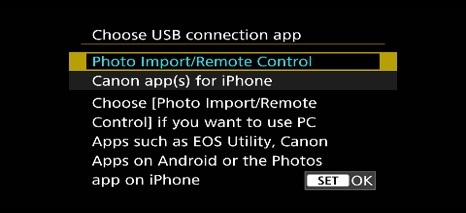

• 5. Set Setup/"Choose USB connection app": "Photo Import/Remote Control".
• 6. Connect camera and Shinobi II with USB cable.
• 7. Set Shinobi II, Control/"Tap to Focus": On.
(If "Tap to Focus" is not shown, that camera is unsupported)
• 8. Selected focus area is displayed only in still mode to Shinobi II display.

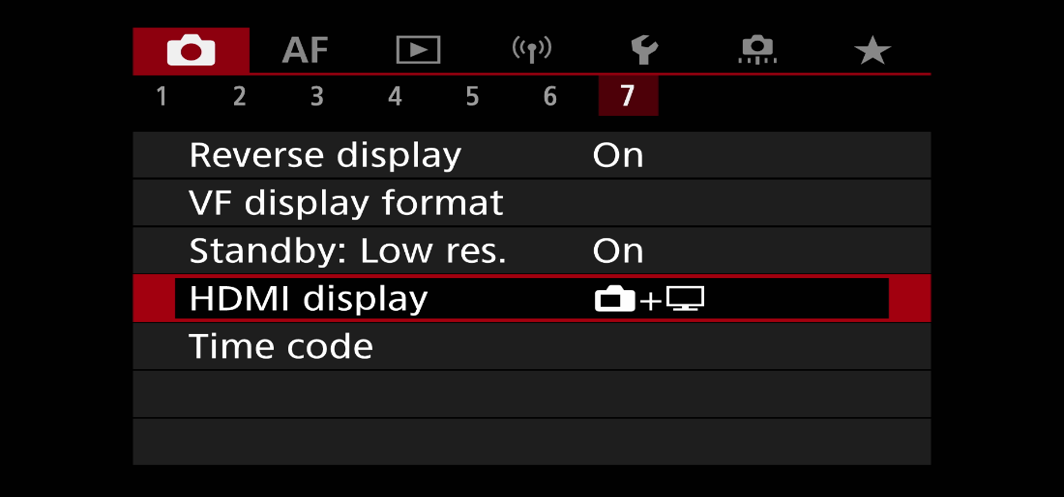

(To confirm selected Focus Area in Movie mode to camera LCD, set "Camera/"HDMI Display": "camera+HDMI") (In some models like R7, "HDMI Display": "camera+HDMI" disables card recording)
• 9. In Shinobi II, tap Touch button : Off, and tap center of screen to toggle to clean screen, then tap Touch button: On.

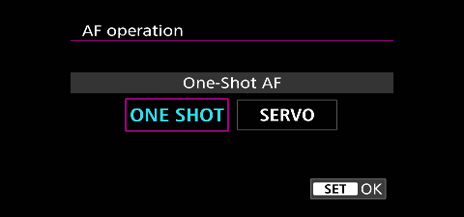

• 10. Confirm lens in AF position, set focus mode and focus area in AF menu.

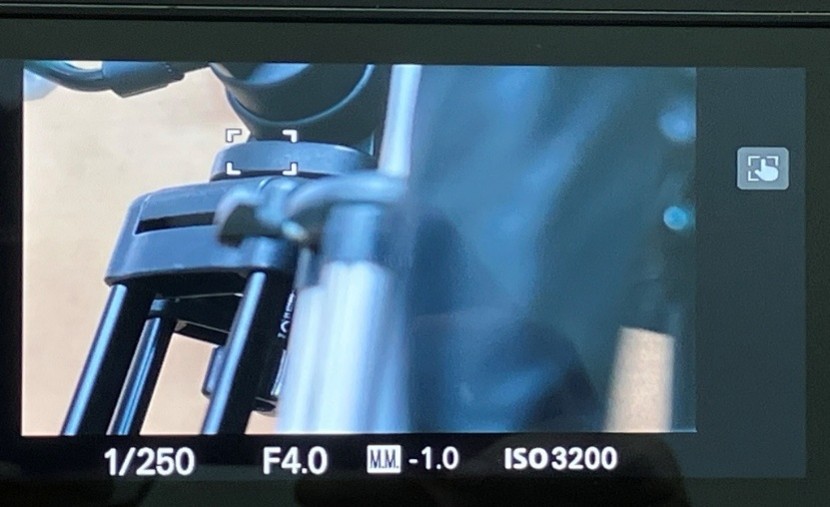

• 11. In Shinobi II, tap area to focus to start AF.
(AF result depends on lens settings, subject contrast/distance, scene brightness etc.)

Sony Camera Setup for Touch to Focus

• 1. Power on camera and Shinobi II.
• 2. Select camera mode from still/movie.
• 3. Select Shinobi II, Control/"Trigger Mode" to match camera mode (Photo/Video).
• 4. Connect camera and Shinobi II with HDMI cable.
• 5. Connect camera and Shinobi II with USB cable.

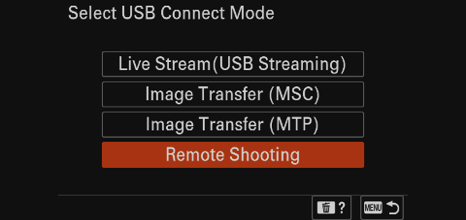

• 6. Select USB mode "Remote Shooting".
• 7. Set Shinobi II, Control/"Tap to Focus": On.
(If "Tap to Focus" is not shown, that camera is unsupported)
• 8. For Touch Focus, set Setup/"External Output"/"HDMI Info. Display": ON.
(For Focus Tracking, set Setup/"External Output"/"HDMI Info. Display" : OFF)
• 9. In Shinobi II, tap Touch button : Off, and tap center of screen to toggle to clean screen, then tap Touch button: On.

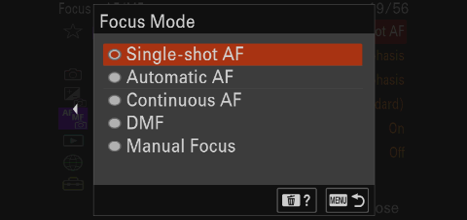

• 10. Confirm lens in AF position, set Focus Mode in Focus/"AF/MF"/"Focus Mode", Focus Area in Focus/"AF/MF"/"Focus Area"/"Focus Area".
• 11. In Shinobi II, tap area to start AF or Focus Tracking.
(AF result depends on lens settings, subject contrast/distance, scene brighness etc.)

Nikon Camera Setup for Touch to Focus

• 1. Power on camera and Shinobi II.
• 2. Select camera mode from still/movie. (In Z6II, only still)
• 3. Select Shinobi II, Control/"Trigger Mode" to match camera mode (Photo/Video).
• 4. Connect camera and Shinobi II with HDMI cable.

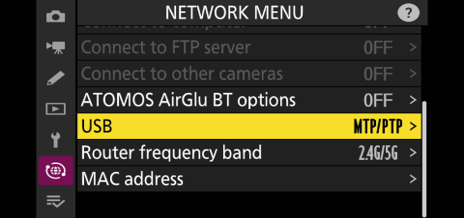

• 5. Set "NETWORK MENU"/USB/"MTP/PTP". (Nikon Z9/Z8/Z6III)

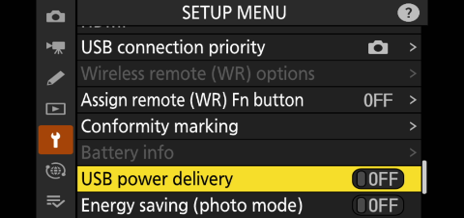

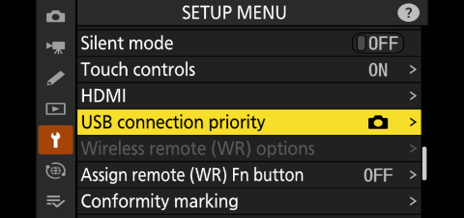

  Set "SETUP MENU"/”USB connection priority" : Shooting. (Nikon Z9/Z8/Z6III)
  Set "SETUP MENU"/”USB power delivery" : OFF. (Nikon Z9/Z8/Z6III)
  Set "SETUP MENU"/”USB" : "MTP/PTP". (Nikon Z6II)
• 6. Connect camera and Shinobi II with USB cable.
• 7. Set Shinobi II, Control/"Tap to Focus": On.
  (If "Tap to Focus" is not shown, that camera is unsupported)
• 8. Focus Area is only shown in camera LCD.
• 9. In Shinobi II, tap Touch button : Off, and tap center of screen to toggle to clean screen, then tap Touch button:On.

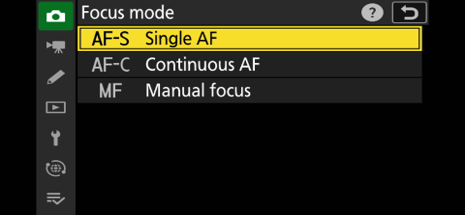

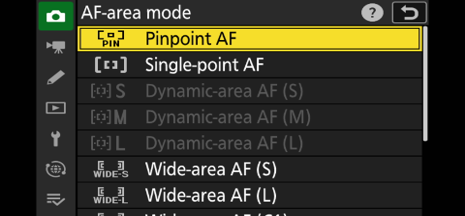

• 10. Confirm lens in AF position, set "Focus mode", "AF-area mode" in "PHOTO SHOOTING MENU" or "VIDEO RECORDING MENU".
• 11. In Shinobi II, tap area to focus to start AF.
  (AF result depends on lens settings, subject contrast/distance, scene brighness etc.)

Panasonic Camera Setup for Touch to Focus

• 1. Power on camera and Shinobi II.
• 2. Select camera mode from still/movie.
• 3. Select Shinobi II, Control/"Trigger Mode" to match camera mode (Photo/Video).
• 4. Connect camera and Shinobi II with HDMI cable.

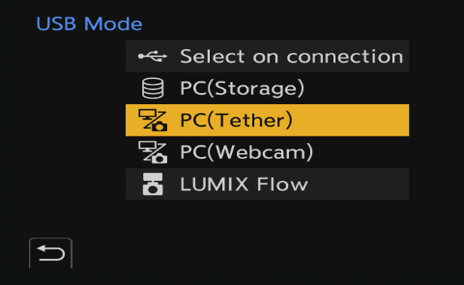

• 5. Select USB mode "PC(Tether)" or "Lumix Flow".
• 6. Connect camera and Shinobi II with USB cable.
• 7. Set Shinobi II, Control/"Tap to Focus": On.
  (If "Tap to Focus" is not shown, that camera is unsupported)

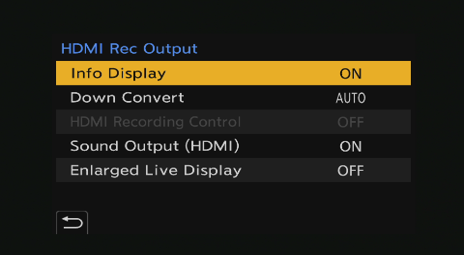

• 8. To confirm selected Focus Area in Shinobi II, set ""IN/OUT"/"HDMI Rec Output"/"Info Display":On and toggle camera DISP button other than Control Panel.
  (If clean image without OSD is required, set "IN/OUT"/"HDMI Rec Output"/"Info Display": OFF)
• 9. In Shinobi II, tap Touch button : Off, and tap center of screen to toggle to clean screen, then tap Touch button:On.

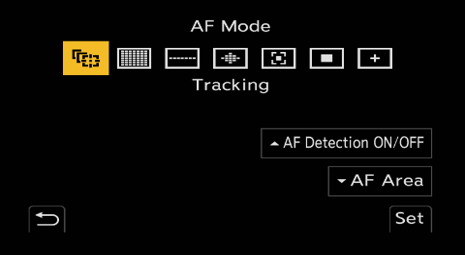

• 10. Confirm lens in AF position, set Single/Continuous AF in rear side, press AF Mode button and select area.
  (Pinpoint in still is selectable, but unsupported in Shinobi II)
• 11. In Shinobi II, tap area to focus to start AF.
  (AF result depends on lens settings, subject contrast/distance, scene brighness etc.)

Fujifilm Camera Setup for Touch to Focus

• 1. Power on camera and Shinobi II.
• 2. Select camera mode from still/movie.
• 3. Select Shinobi II, Control/"Trigger Mode" to match camera mode (Photo/Video).
• 4. Connect camera and Shinobi II with HDMI cable.

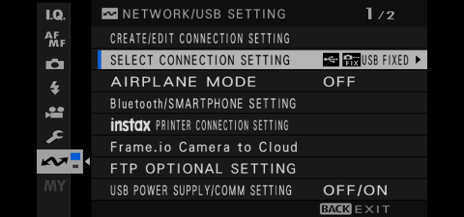

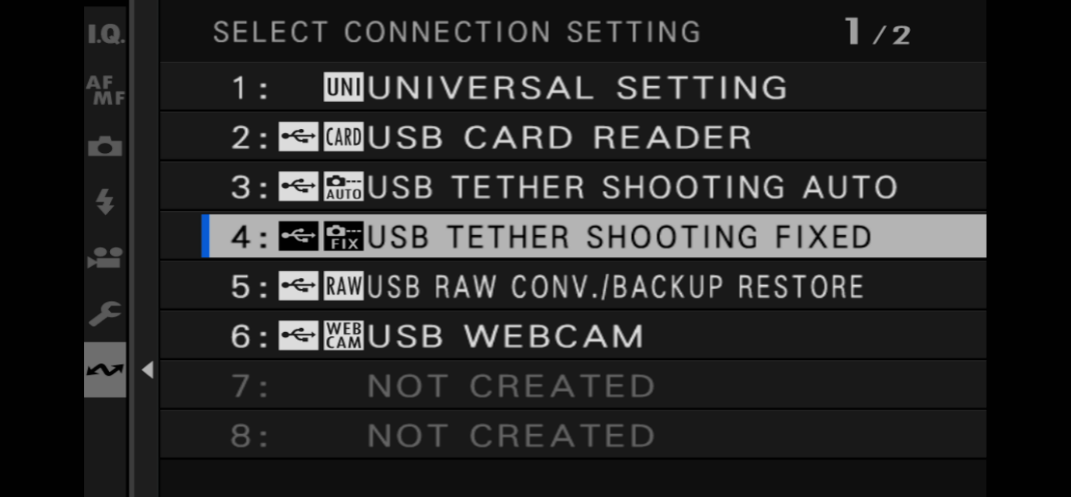

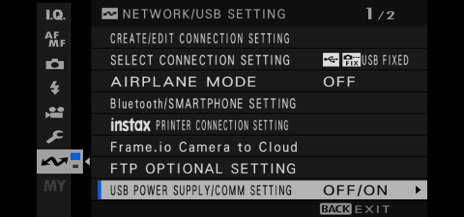

• 5. Set "NETWORK/USB SETTING"/"SELECT CONNECTION SETTING" : "USB TETHER SHOOTING FIXED".
  Set "NETWORK/USB SETTING"/"USB POWER SUPPLY/COMM SETTING" : "OFF/ON".
• 6. Connect camera and Shinobi II with USB cable.
• 7. Set Shinobi II, Control/"Tap to Focus": On.
  (If "Tap to Focus" is not shown, that camera is unsupported)
• 8. In Shinobi II, tap Touch button : Off, and tap center of screen to toggle to clean screen, then tap Touch button:On.

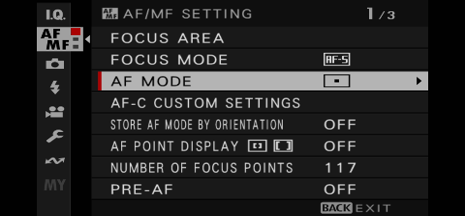

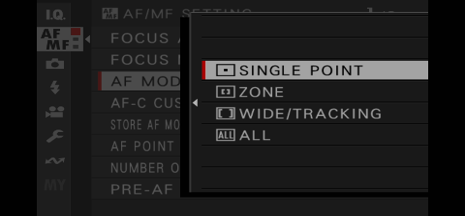

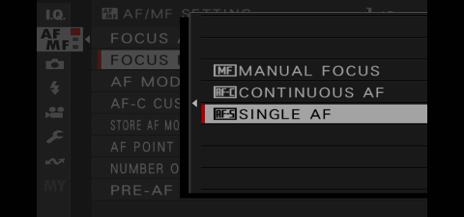

• 9. Confirm lens in AF position, set "AF/MF SETTING"/"FOCUS MODE" and AF/MF SETTING"/"AF MODE". Area size and location adjustable by "AF AREA".
  (Tracking is selectable, but unsupported in Shinobi II)
• 10. In Shinobi II, tap area to focus to start AF.
  (AF result depends on lens settings, subject contrast/distance, scene brighness etc.)
