Firmware Update Instructions

We recommend always keeping your Shinobi II’s firmware up-to-date, so you receive immediate access to brand-new features and important bug-fixes. Here’s how you can update your Shinobi II:

1. Extract the firmware ZIP file provided by Atomos.

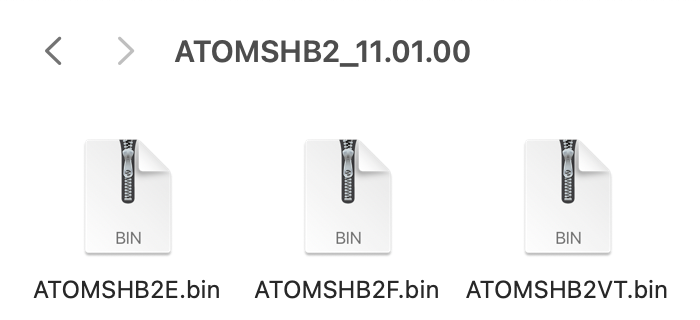

2. Copy all .BIN files included in the ZIP onto an SD Card.
   a.
Atomos recommends you use a freshly formatted SD Card. FAT32 (MS-DOS) and NTFS file systems are supported.

   b. Ensure that the firmware update files are placed at the root directory of the SD card, and not in a folder or sub folder.
3. Use a freshly charged battery on your Shinobi II or connect to mains power via a USB-C power supply that outputs at least 10W. It is critical that your Shinobi II does not lose power during the firmware upgrade.
4. Insert the SD Card with the update files into the Shinobi II’s SD Card slot.
5. Power on your Shinobi II with a short press of the power button.
6. The Atomos logo will appear, and after a few seconds, the firmware update will start automatically with the progress indicated below.
7. When the firmware update is finished, the Shinobi II will prompt you to restart the device. Before you restart, please wait for a few seconds to give the Shinobi II some extra time to complete the update.
8. Power off the Shinobi II by holding down the power button, and boot it up again shortly after.
9. When the Shinobi II has restarted, return to the Main menu, and select the Info tab. In there, verify that the version number matches the firmware you wanted to install.
