The Sumo19 is controlled via an intuitive touchscreen interface. Icons and buttons have been designed and laid out in a specific way to ensure operation is simple and fast.

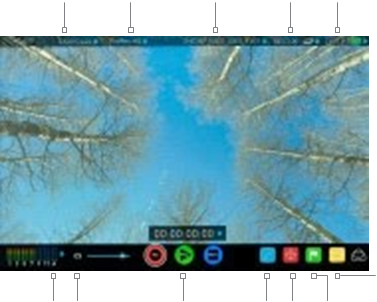

The high definition 1920x1080 Home Screen displays all necessary technical and functional information.

Everything important for operation and adjustment is no more than one touch away. Here is how it works:

Touching the center of the screen at any time removes the top interface overlay, tapping again clears the bottom controls and a third tap brings all the options back up. Active Shot Setup or Monitor assist functions that are enabled will remain active when the menu system is cleared. This is to allow you to use the Shot Setup and Monitor assist functions at all times while shooting.

Category 1 – Operating Settings

This list of real-time operating settings can be adjusted or toggled when a BLUE ARROW       is present. If the Blue arrow is disabled, the setting cannot be adjusted.

Category 2 – Shot Setup & Monitor Assist Tools

This list represents the icons and functions available for Shot Setup and Monitor Assist Tools:

Waveform Monitoring Functions

See page 24

Monitor Assist Functions

See page 26

Smart Log Cut and Tagging

See page 29

Monitor Mode (AtomHDR & 3D LUTs)

See page 31

Touch these icons to reveal more functional options in a sub-category. Touch the sub category icons to toggle the functions on or off. When a Shot Setup or Monitor Assist function is active, detailed settings for each Shot Setup tool are also available from this panel.

Touch the  icon to go back to the Home Screen at any time.

Category 3 – Main Controls REC, PLAY & MENU

The Main Controls of the unit are indicated by large round icons.

	To enable recording See page 16		For instant playback and review See page 16		To make settings changes See page 16

Home screen and menu functions

Rec(Record)

This is the icon you touch to begin a recording. Touch it again to stop a recording. While recording the Rec icon changes to a Stop icon and a red frame is present around the screen.

Sumo19 uses a unit name, scene, shot and take convention to name the clips. Select the clip you want to play by touching the file name and this will start to playback.

Standby

Nodisk

The Play button will bedimmed and disabled if there is no disk or the disk is not formatted.

See page 20 - Formatting disks

Recording

No input / No media

The Rec icon is dimmed and disabled if there is no valid video input OR, the disk is notformatted,or the disk is full. The button isdimmedbecauseyoucannot record.

The Rec icon is dimmed and disabled if there is no valid video input OR, the disk is notformatted,or the disk is full. The button isdimmedbecauseyoucannot record.

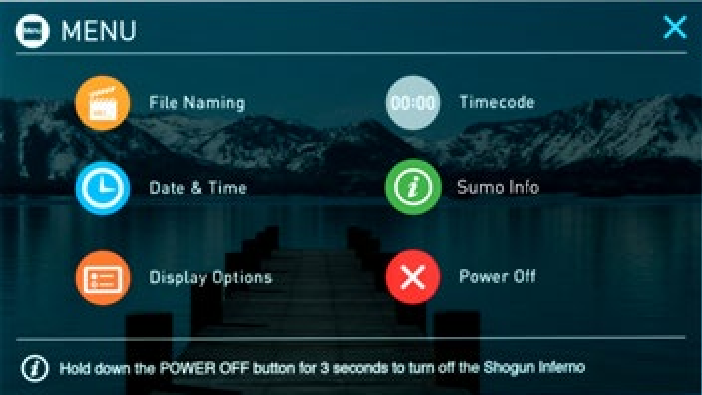

Menu

Pressing this takes you into a number of options which will explained next.

Play

Touch this icon to play previously recorded clips. When you press the green Play button the Sumo19 will switch to playback mode and automatically play the last recorded clip.

Standby

Navigation

Time Lapse

Pre Roll

When the icon is shown with small interval lines around the red circle this means that Time lapse recording is activated.

For more information on Time lapse on page 39

When a white circular arrow is show this means Pre Roll record is active.

For more information on Pre Roll see page 39

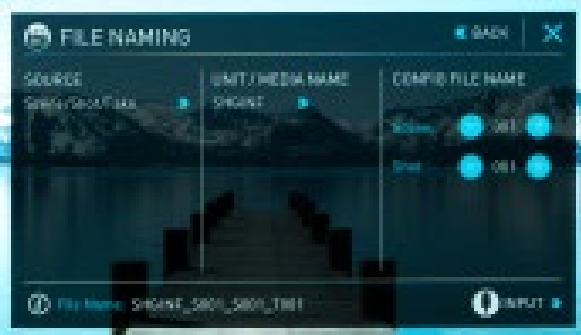

File Naming

Allows you to select the scene and shot number that will be recorded as well as change the unit / media name. To change the unit name tap the arrow under UNIT/MEDIA NAME, Use the left and right arrows to select a letter, and the up and down arrows to change its value.

To modify the scene and shot number under CONFIGURE FILE NAME, select plus or minus next to scene or shot (up to 999). The number you choose will then be shown in the file name at the top of the screen during recording, the take number is automatically increased with each take.

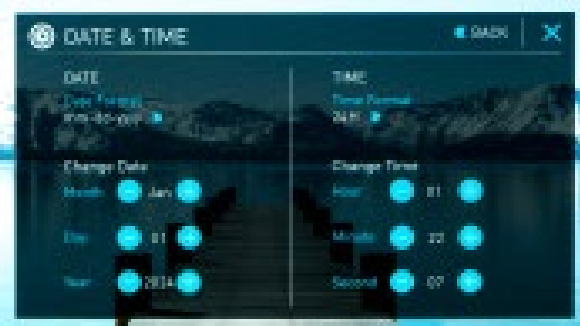

Date & Time

Allows you to adjust the date and time shown by the clock in the Sumo19. This will also change the time of day Timecode. Touching the Date & Time takes you into the Date and Time Screen.

Date formats (i.e. dd-mm-yyyy or mm-dd-yyyy) are selectable by tapping the blue arrow on “Select Date Format” Menu. Simply keep tapping until the desired format is shown. The Time, Month, Day and Year are selectable and can be modified by clicking the blue plus and minus icons next to the desired fields.

   For both Time of Day Timecode and Scheduling start times for Time Lapse record mode it’s important to ensure that the correct

time is set.

Lock the Display Screen

You can lock the display of the Sumo19 so that no changes can be made by mistakenly touching the screen, to lock the Sumo19 simply short tap the power button. Short tap the power button again to unlock the unit.

The lock screen can be combined with the display off function so that when lock is engaged the display is turned off. The Tally light on the front of the unit will still display Rec (Red) or idle (green) status. Locking of the display can be found in the Monitor Mode.

UNLOCKED           LOCKED

Timecode

Takes you to the dedicated Timecode configuration page.

Refer to Page 36 of this manual for more information.

Sumo19 Info

Shows the software (firmware) version and unique device ID (DID) of your Sumo19 device. This will be required

to activate the Avid DNxHD / Avid DNxHR codec. You can also check on the Atomos website to ensure you are running the latest firmware:

http://www.atomos.com/support

Remember that pressing on the Back button will always take you back to the previous menu.
