Master Caddy II Slot

On the side of the unit is a 2.5mm HDD slot for Sumo19 Master Disk Caddy II’s. To insert a caddy, gently push until it clicks into position.

Formatting disks - see page 20

Master Caddy II - 2 keyway system

The Master Caddy II is hot-swappable, so you can do this at any time – even while the unit is turned on. But don’t do it while recording or you will get a corrupted file that may be unplayable.

The Sumo19 does NOT have a release latch - it is friction-fit. Simply pull the Master Caddy out using the top and bottom tabs on the caddy itself.

Master Caddy II is backwards compatible with previous Atomos recorders Master Caddy 1 is not compatible with Sumo19 as the keyways are on one side only.

Screw Mounts

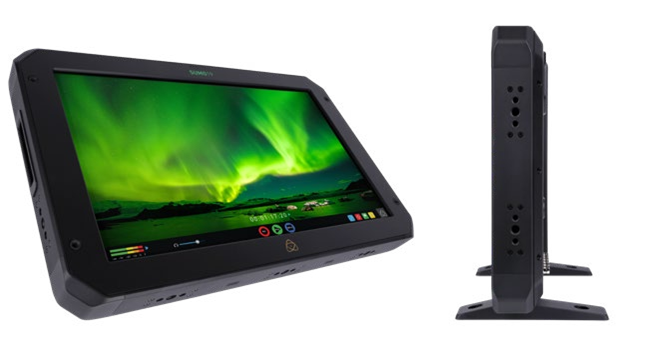

The Sumo 19 features standard tripod ¼” screw mounts and 3/8” screw mounts on the top/bottom/side of the unit along with a standard VESA mount on the rear panel, allowing you to configure your recording setup to suit your needs (camcorder mount accessories not included with Sumo 19).

Ensure you do not over tighten the screw mounts as this may cause damage

Attach base to Sumo19                                                          Fold out the face of the hood

Attaching the Sun Hood

For HDR, the viewing experience can easily be influenced by the environmental conditions and the best experience for viewing HDR requires that you minimise the ambient light between your eyes and the screen to easily resolve the dynamic range of the scene.

For this reason, we have developed an optional sun hood for Sumo 19. It consists of a zippered corner construction that allows the user to collapse and use as screen protection during transportation and securely screws to the front face of Sumo 19 to provide shelter for privacy and premium outdoor monitoring.

To assemble the sun hood please follow the following steps:

Attach the base to the Sumo19 in the orientation shown above.

This is a snug fit in order to minimize external light bleed.

Push the sunhood in, align the top and bottom screw mounting holes and attach the retaining screws.

As the retaining screws provide anchor point for mounting make sure they are firmly connected to provide a solid base.

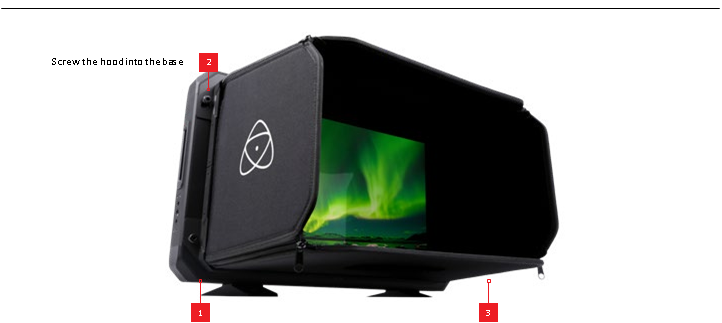

With the Sun hood base in place, take the main section and pop this out to form a rectangular tunnel and zip up the sides to ensure it looks like the image above.
