The Connect Menu allows you to pair your SHOGUN CONNECT with Atomos Cloud Studio. It also displays the network connection status and the status of the connection to the Atomos Cloud.
Cloud features are only available when your SHOGUN CONNECT is in Connect Mode.
CONNECT MODE

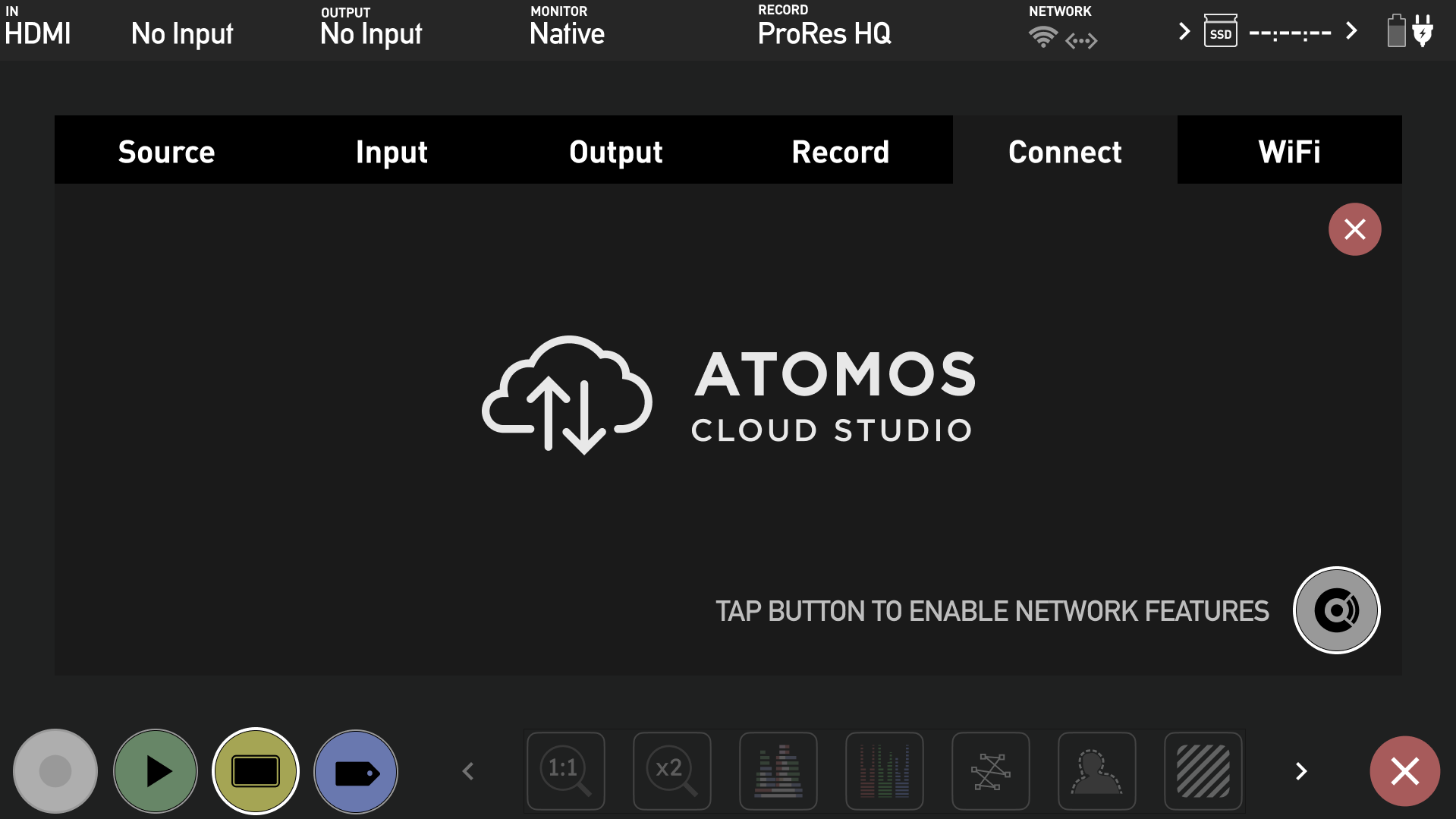

The first time that you open the Connect Menu page, the grey Connect icon will appear on-screen. Tap the grey Connect mode icon to enter Connect mode. This mode allows you to connect to Atomos Cloud Studio. This screen will also be displayed after performing a factory reset, or installing new AtomOS firmware.
Once you are in Connect mode, the settings and information are displayed on the Connect Menu page.
Whilst in Connect mode the Connect button will be blue. Tapping the Connect button in this state, allows you to manually turn the connection to Cloud Studio on or off.
Connecting to the Atomos Cloud
Before connecting to the Atomos Cloud, your device must first be connected to a network. Refer to the How to connect to a Wi-Fi network: and How to connect to an Ethernet network pages for further information on how to connect to a network. When connected to a Wi-Fi or Ethernet network, the corresponding icon will appear white in the information bar under Network. Once you have successfully connected to a network, you can follow the steps below to pair the device to the Atomos Cloud from the Connect Menu.
How to Pair your device to the Atomos Cloud
Confirm that your device is connected to a network. The network connection status is displayed under Network as either Connected or Disconnected, with a green or grey circle to indicate the status visually.
Tap on Pair.
The device communicates with Atomos Cloud Studio and is assigned a unique three-word combination, which is displayed on your SHOGUN CONNECT screen with a QR code.
Scan the QR code to connect to Atomos Cloud Studio on your mobile device, or navigate to atomos.cloud on a desktop browser . Enter your details and tap/click Next to sign up for an Atomos Cloud Studio Account. Tap/click on Sign In if you already have an Atomos Cloud Studio Account, and follow the prompts to sign in.
Follow the guidelines to create a suitable password.
Check your email inbox for an email from Atomos with a six digit verification code. It will be sent to the email address used to create your Atomos Cloud Studio Account. Make sure you check your Junk-mail folders as well. Enter the verification code on screen when prompted and tap/click Next.
The main page will then open on the Devices tab. This screen displays the CONNECT devices that have been paired with your Atomos Cloud account. Tap/click on Pair Device in the center of the screen.
A window will appear with spaces to enter the three word code that was shown on your Atomos device. Enter the three words in the spaces provided and tap/click on Next.
Give your device a nickname to help identify it.
The device has now been paired with your Atomos Cloud account. The Devices tab will update to show an image of the device you paired and it's details. The three word code is displayed on the image of the device and the device type appears at Device. When your device is connected to Atomos Cloud, a green circle will appear next to the device nickname at the top of the device box.
The Connect Menu page of your SHOGUN CONNECT will also update to display Connected at Atomos Cloud and have a green circle to indicate the status visually. The current mode will also be displayed at Device Mode, with the current destination settings.
Next you will need to configure the services for this device at atomos.cloud. Tap on the + symbol next to Add Destination in the device box to add a destination.
A new window opens displaying the destination options. Click to select a destination and you will be prompted to enter your credentials and other settings for that destination.
Refer to Using Frame.io Camera to Cloud (C2C) and Streaming to Facebook Live for more information on using these destinations.
Adjusting settings for paired devices
Tapping/clicking on the three dots in the upper right corner of the device image box displays options to change the nickname or unpair the device.
Renaming your device
Select Change Nickname, and enter the new name in the box that appears.
Unpairing your device from the Atomos Cloud
If you decide that you would like to unpair a device from your Atomos Cloud Account, select Unpair Device from the drop-down menu. A dialog box will ask you to confirm your decision.
Unpairing a device will also disconnect any associated services that you may have connected to.
Adjusting Settings
If you would like to make changes to your Atomos Cloud Account, tap/click on Account on the left side of the screen to open the Account tab. This page allows you to change your password, edit your profile details or sign out of the Atomos Cloud Studio Account.
